Details

---

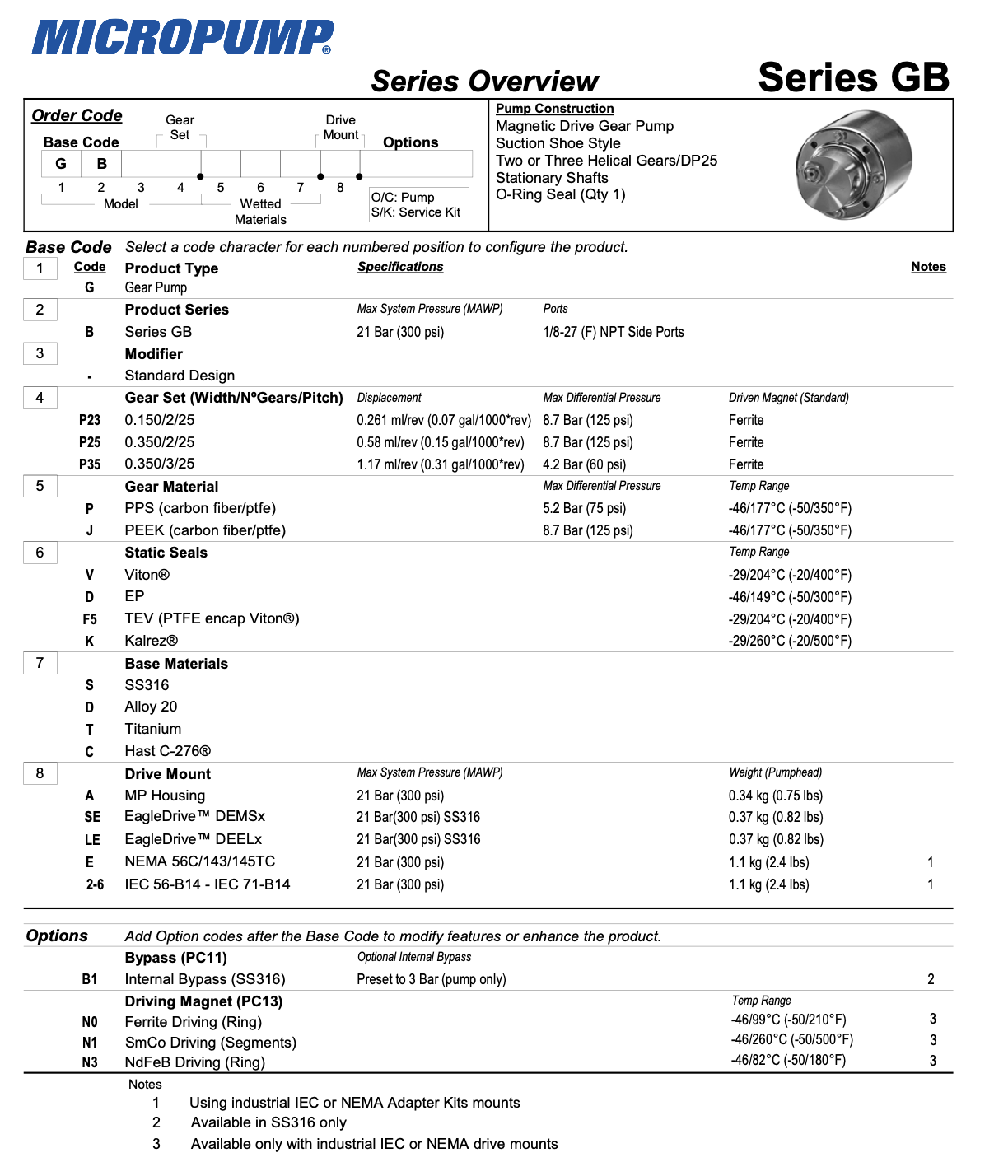

Micropump GB-P23.PDS.A
Part-number: L19481

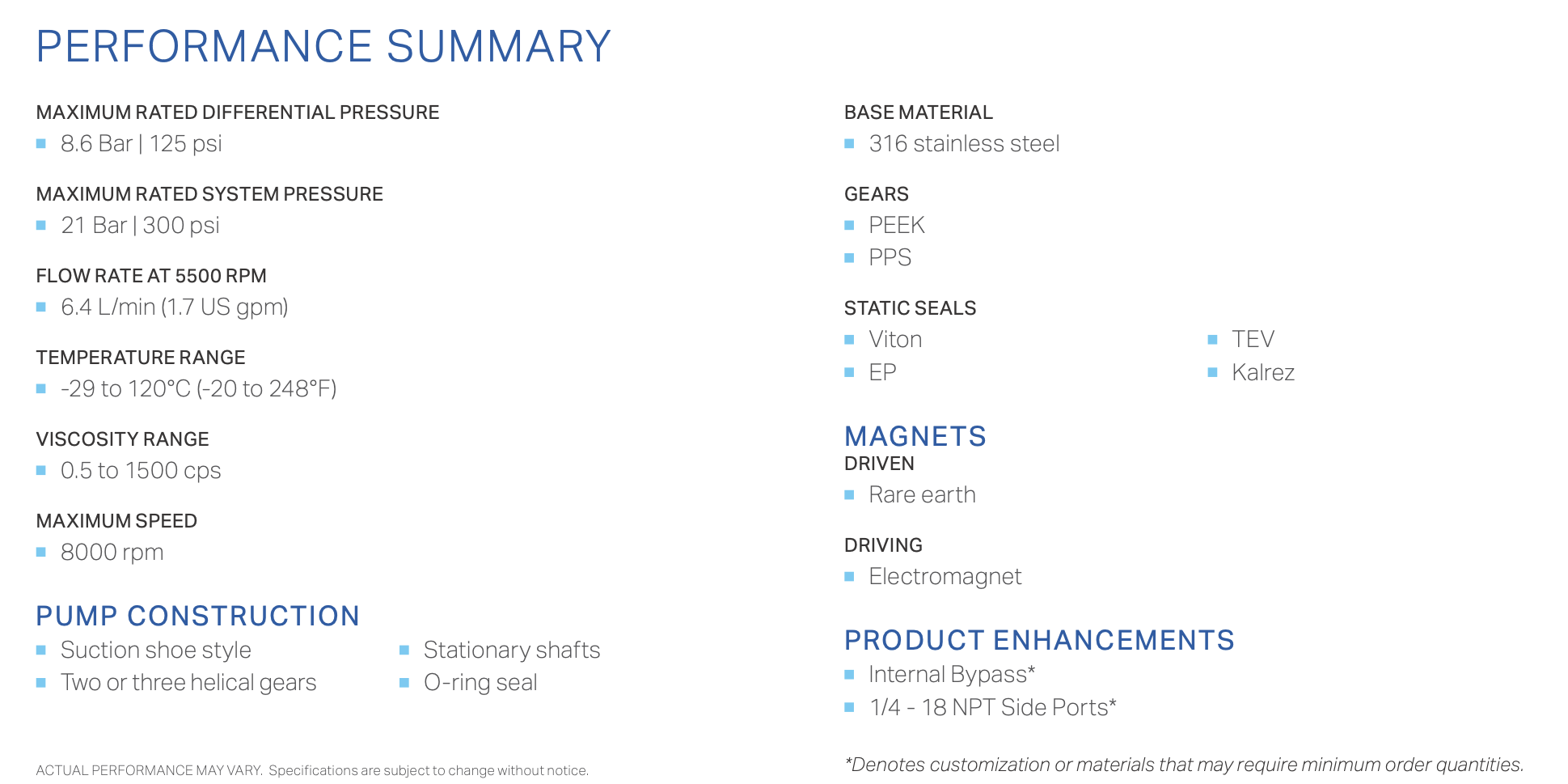

The GB Series magnetic drive gear pumps feature a suction-shoe design that self-compensates for wear, ensuring near zero slip and long pump life. Available in standard or custom configurations, GB Series pumps offer the flexibility to meet a wide range of applications with a compact size. Options include two standard gear sizes, an internal bypass, and variety of materials.

Displacement                            0.26 ml/rev (P23)
                                                  0.58 ml/rev (P25)
                                                  1.17 ml/rev (P35)

Recommended Speed Range    500-5500 RPM

Flow Rate (min).                       131 mL/min | 2.1 US gal/hr
