Details

---

WS-01000A-S-S-1-AA-00 1000A Programmable Optical Filter S-Band Bench Top

WS-01000A-U-S-1-AA-00 1000A Programmable Optical Filter U-Band Bench Top




The WAVESHAPER®  1000A and 4000A allows arbitrary optical filtering of attenuation and phase across the S-Band and the U-Band of optical communications. In addition, the 4000A allows wavelength selective optical switching and also programmable wavelength selective power splitting. This instrument family is broadly used in Research and Development applications.

FEATURES

• Product versions available for

· S-Band

· U-Band

• Arbitrary control of attenuation and phase

• Port configuration: 1 x 1 and 1 x 4 port

• Power splitting

• Webserver included


APPLICATIONS

• Wideband System Test

• Optical Comb Generation

• DWDM Testing

• Wavelength Selective Switching

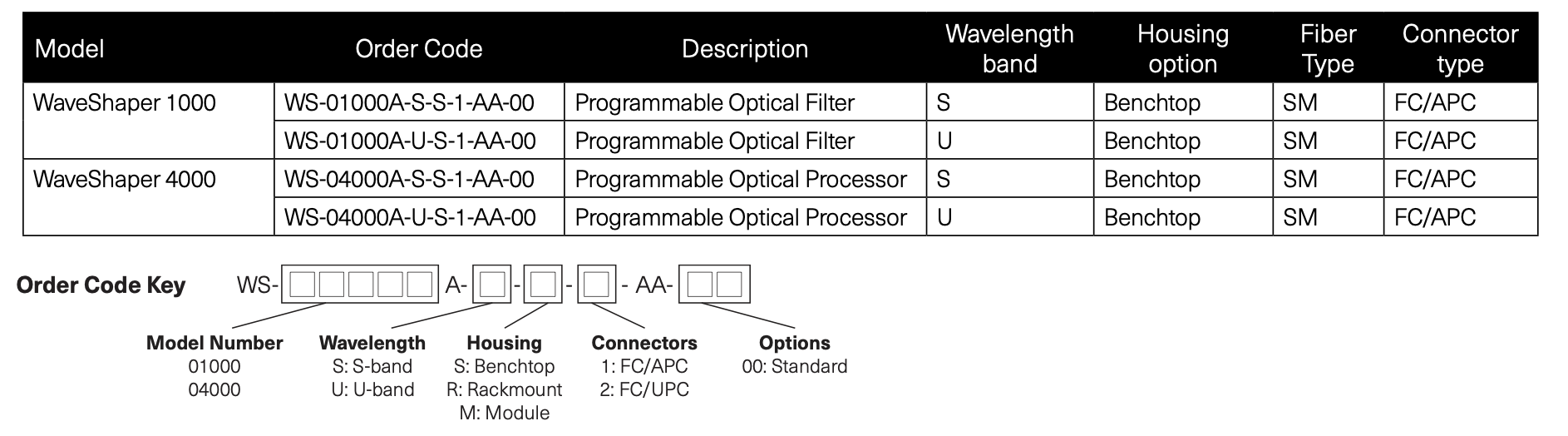

Configuration Guide
