Details

---

WS-04000A-S-S-1-AA-00  4000A Programmable Optical Processor  S-Band Bench Top

WS-04000A-U-S-1-AA-00  4000A Programmable Optical Processor  U-Band Bench Top



WAVESHAPER® A-SERIES 4000A Programmable Optical Processor

The WAVESHAPER®  1000A and 4000A allows arbitrary optical filtering of attenuation and phase across the S-Band and the U-Band of optical communications. In addition, the 4000A allows wavelength selective optical switching and also programmable wavelength selective power splitting. This instrument family is broadly used in Research and Development applications.

FEATURES

• Product versions available for

· S-Band

· U-Band

• Arbitrary control of attenuation and phase

• Port configuration: 1 x 1 and 1 x 4 port

• Power splitting

• Webserver included


APPLICATIONS

• Wideband System Test

• Optical Comb Generation

• DWDM Testing

• Wavelength Selective Switching

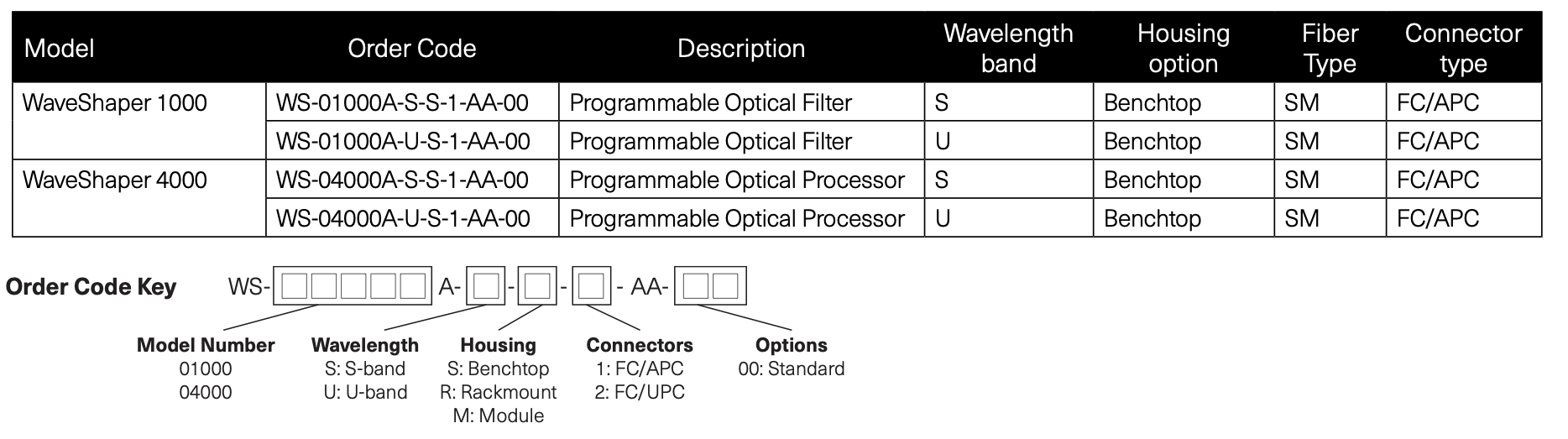

Configuration Guide
