Micropump
EAGLEDRIVE™ DEELE

86888	Drive		DEELE	DC EagleDrive™ ELE Electromagnetic Brushless (Rev1.5); 250-8000RPM, Power: 10-38VDC, 0-5V Speed Control, wire leads, 20 oz.-in, 72W, 1.1 lbs., LE-Mount
86555	Drive		DEELE, 12V ONLY	DC EagleDrive™ ELE Electromagnetic Brushless (Rev1.5); 500-5500RPM, Power: 12VDC ONLY, 0-5V Speed Control, wire leads, 20 oz.-in, 72W, 1.1 lbs., LE-Mount
P100000002332	Drive		DEELE, FIXED SPEED	DC EagleDrive™ ELE, Electromagnetic Brushless (Rev1.5); 5000RPM FIXED SPEED, Power: 10-38VDC, 2-wire leads, 20 oz.-in, 72W, LE-Mount

The EagleDrive DEELE is an electromagnetic drive for Micropump Series GB, GJ, and GJR Series pumps. It is a very compact, high-performance drive that enables our pumps to address a wide range of applications. The EagleDrive is an innovative brushless DC motor with no moving parts for outstanding efficiency and reliability. With variable speed operation, a tachometer and error output, and with fwd/rev capabilities, the EagleDrive is the right choice for many designs.

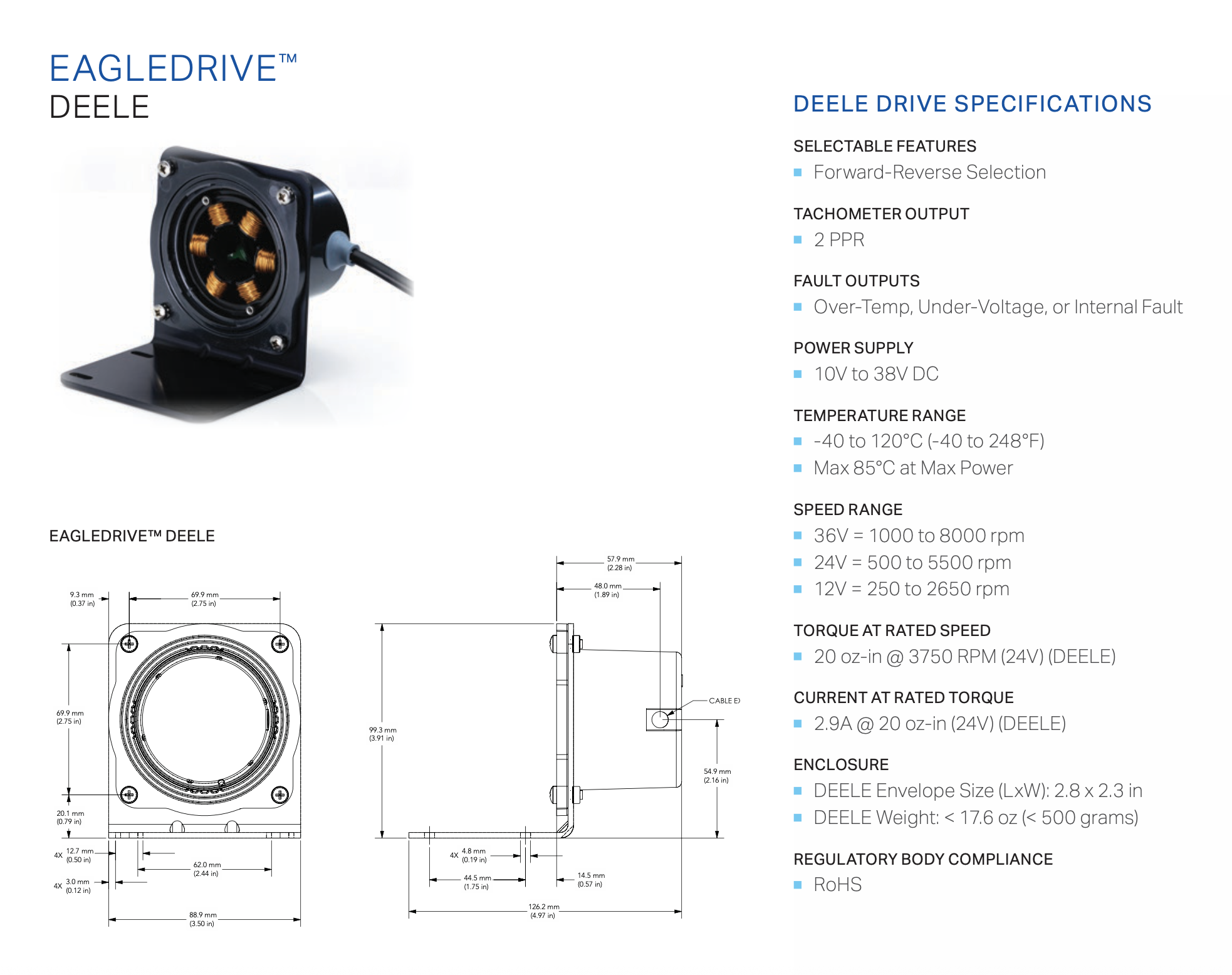

DEELE DRIVE SPECIFICATIONS

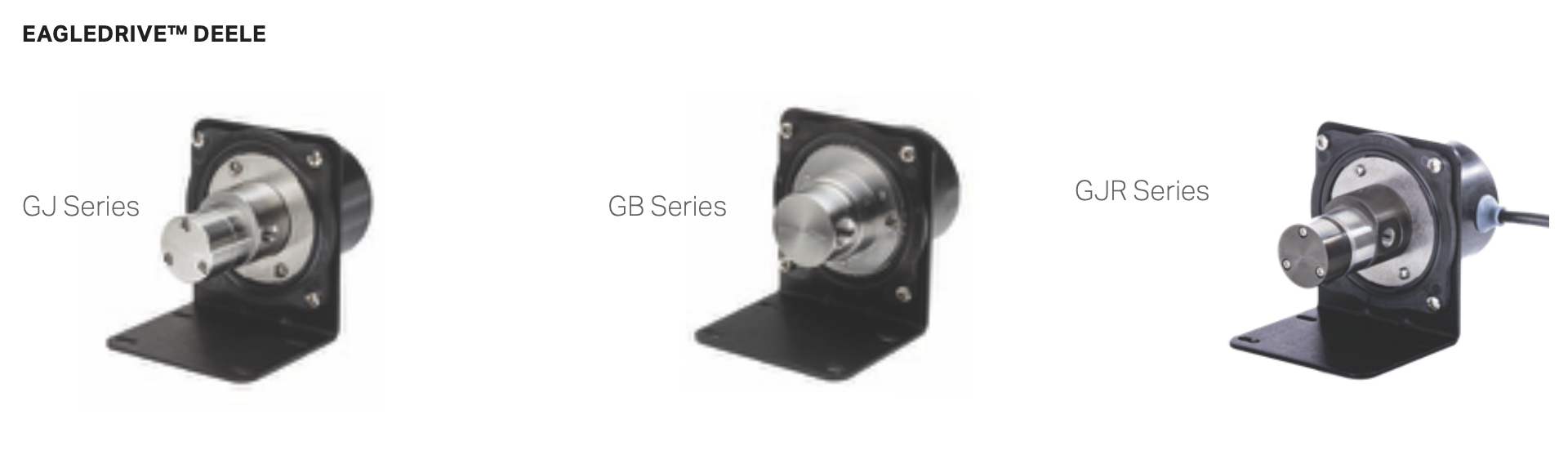

EAGLEDRIVE™ PUMP CONFIGURATIONS
